Cable Accessories

Cable Lugs & Terminals

Tinned copper, aluminium, and bimetallic crimp lugs for power termination.

MaterialElectrolytic Copper (ETP)
FinishTin Plated (5µ min.)
Request Quote Datasheet

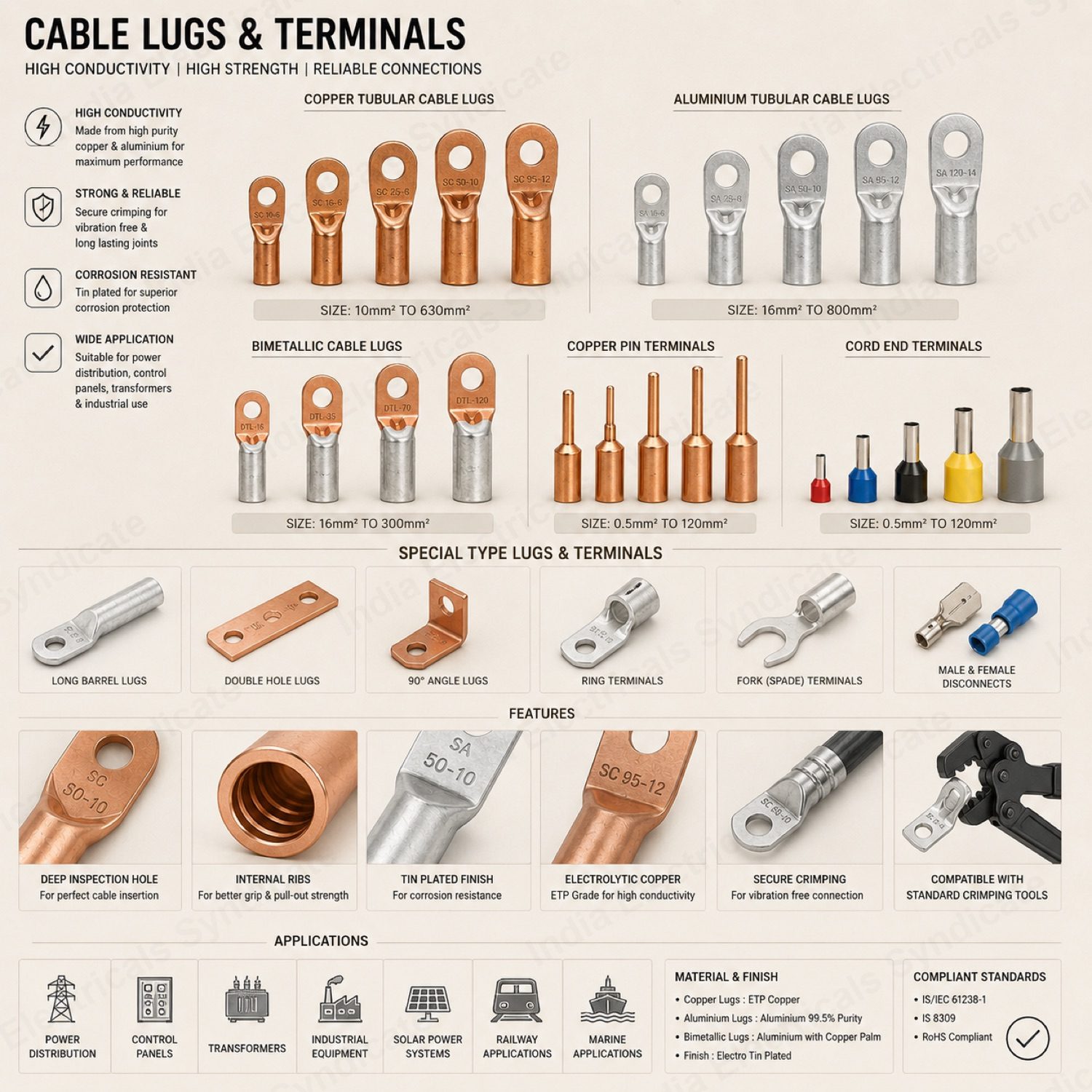

Cable Lugs & Terminals — Overview

India Electricals Syndicate supplies crimp-type cable lugs and terminal connectors made from electrolytic copper, aluminium and bimetallic stock for low- and medium-voltage power terminations. The lug transfers the full cable current into the busbar or equipment stud with a gas-tight crimped joint — the integrity of every power connection in a panel depends on the correct lug, barrel and conductor match.

The range covers conductor sizes from 1.5 sq.mm to 1000 sq.mm in tinned copper, aluminium and bimetallic (Cu-Al) construction, with inspection holes and chamfered entry for full conductor insertion. Bimetallic lugs allow aluminium cable to terminate safely onto copper hardware without galvanic corrosion at the joint.

Lugs are manufactured to IS:8309 / IS:14255 practice with electro-tin plating for corrosion and contact resistance control, suitable for power distribution, switchgear and motor terminations. Documentation is supplied against specification. Send your cable schedule with a quote request for a sized offer from our Howrah desk.

Technical Specifications

Cable Lugs & Terminals

Specifications

Conductor Size Range
1.5 — 1000 sq.mm
Material
Electrolytic Copper / Aluminium / Bimetallic
Surface Finish
Tin-plated / Bare
Hole Size
M6 — M20
Voltage Rating
Up to 33 kV
Connection Method
Hydraulic / Mechanical Crimp

Standards Compliance

  • IS:8309
  • IS:8394
  • DIN 46235
  • BS 4579

Materials Available

  • Electrolytic Copper (ETP)
  • EC-Grade Aluminium
  • Bimetallic (Cu-Al)

Surface Finishes

  • Tin Plated (5µ min.)
  • Bare Copper

Applications

  • Power cable terminations
  • Switchgear & panel boards
  • Motor connections
  • Transformer terminations
  • Solar DC combiner
  • BESS terminations

Frequently Asked Questions

What conductor range do IES cable lugs cover?+

1.5 sq.mm to 1000 sq.mm in tinned copper, aluminium and bimetallic construction for LV and MV terminations.

When is a bimetallic lug required?+

When aluminium cable terminates onto copper hardware — the bimetallic (Cu-Al) joint prevents galvanic corrosion at the connection.

Are the lugs tin-plated?+

Copper lugs are electro-tin plated to control corrosion and contact resistance at the crimped joint.

Where are they supplied from?+

India Electricals Syndicate, Howrah, Kolkata — serving Indian power and industrial projects since 1972.
