Cable Management Systems

Cable Tray Support Systems

Cantilever brackets, threaded rods, and overhead supports.

MaterialIS:2062 Steel
FinishHot-Dip Galvanized (85µ min.)
Request Quote Datasheet

Cable Tray Support Systems — Overview

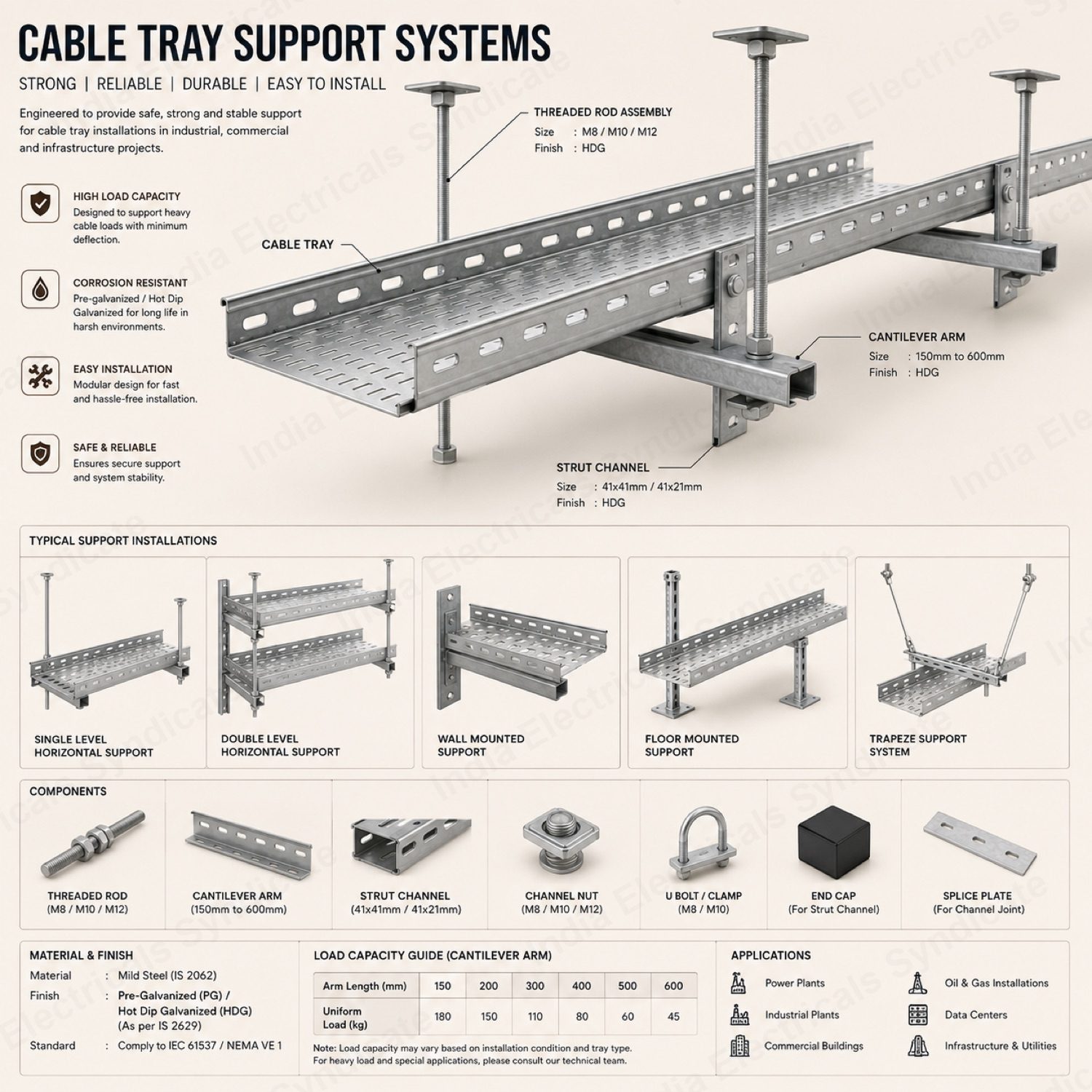

India Electricals Syndicate manufactures the full cable tray support system at Howrah — cantilever brackets, slotted C-channel and strut, threaded rods in M8, M10 and M12, wall brackets, ceiling-suspended hangers and floor-mount frames. Correctly engineered supports are what let a tray run carry its rated load at the design span; IES sizes the support to the loaded tray, not the other way round.

Brackets and channels are press-formed and welded from certified steel, slotted for field adjustment, and hot-dip galvanized to IS:2629 so the support life matches the galvanized tray it carries. Standard and heavy-duty cantilever arms are available with published safe working loads to suit single- and multi-tier tray stacks.

Support hardware is supplied finish-matched to the project trays with mill test certificates and inspection records. Share your tray loading and support-centre schedule with a quote request and the Howrah engineering desk will return a load-rated support proposal.

Technical Specifications

Cable Tray Support Systems

Specifications

Cantilever Lengths
150 — 900 mm
Channel Section
41x41 / 41x21 slotted strut
Threaded Rod
M8 / M10 / M12 (HDG)
Load Rating
Up to 500 kg per support

Standards Compliance

  • IS:2062
  • IS:2629

Materials Available

  • IS:2062 Steel

Surface Finishes

  • Hot-Dip Galvanized (85µ min.)
  • Pre-Galvanized

Applications

  • Wall-mounted cable runs
  • Ceiling-suspended trays
  • Floor-mounted cable racks

Frequently Asked Questions

What support hardware does IES supply?+

Cantilever brackets, slotted C-channel and strut, threaded rods (M8/M10/M12), wall brackets, ceiling-suspended hangers and floor-mount frames.

How are supports galvanized?+

Hot-dip galvanized to IS:2629 so the support service life matches the galvanized cable tray it carries.

Are safe working loads published?+

Yes — standard and heavy-duty cantilever arms have published safe working loads to suit single- and multi-tier tray stacks at the design span.

Where are they manufactured?+

At India Electricals Syndicate, Howrah, Kolkata — in continuous production since 1972.
