Earthing & Lightning Protection

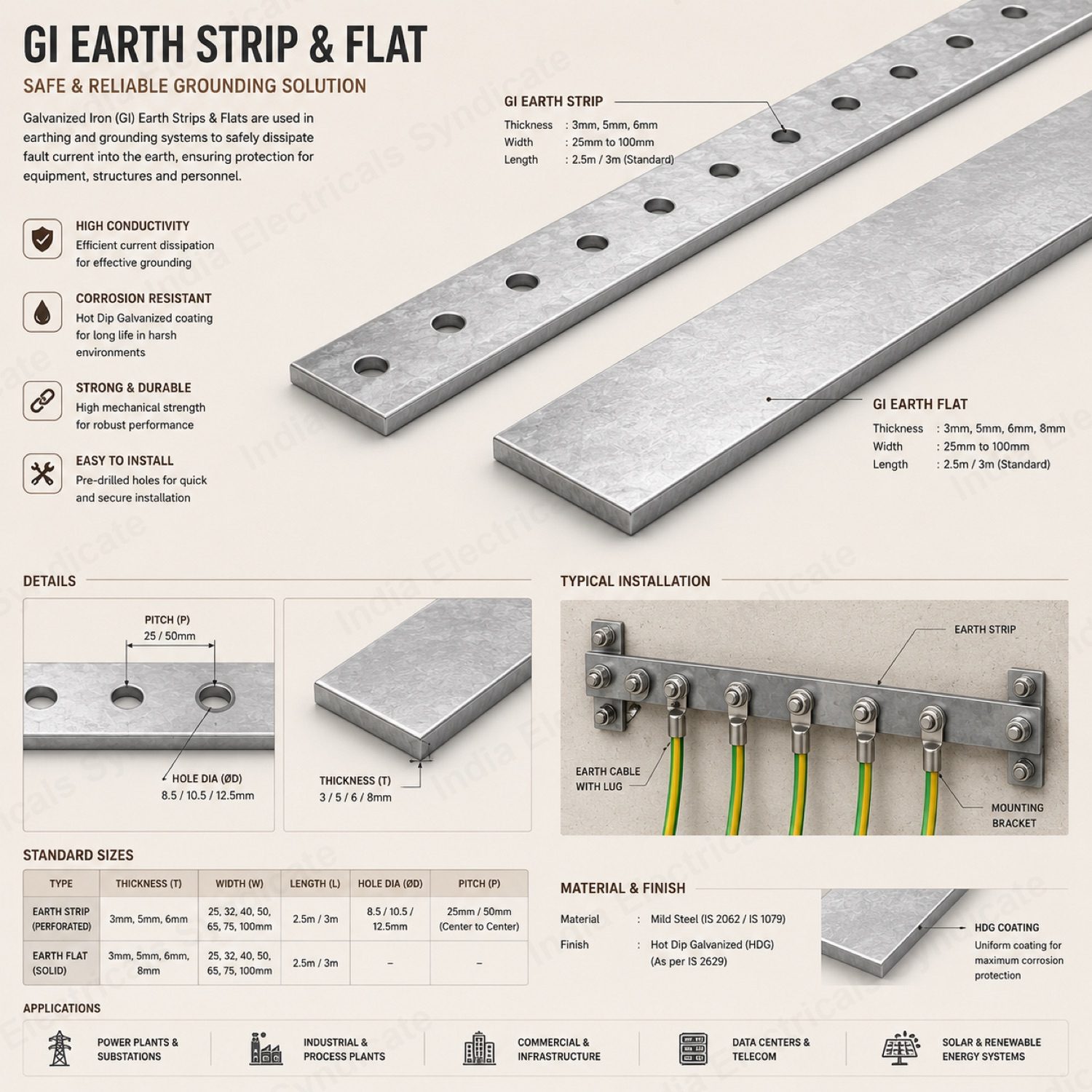

GI Earth Strip & Flat

Hot-dip galvanized earthing flats for grounding networks.

MaterialIS:2062 E250 Steel
FinishHot-Dip Galvanized
Request Quote Datasheet

GI Earth Strip & Flat — Overview

India Electricals Syndicate manufactures galvanized iron earth flats and strips at Howrah for substation grounding mats, equipment bonding and lightning-protection down-conductors. The buried earth grid is the backbone of every substation safety system; GI flat is the most widely specified conductor for it in India because of its mechanical strength, weldability and cost over large grid areas.

Flats are produced from IS:2062 steel and hot-dip galvanized to IS:4759, in standard cross-sections to the grounding design, with drilled, bent and welded configurations made to the grid layout. The galvanized coating resists soil corrosion over the design life while keeping joint resistance low at welded and bolted connections.

Material is fully traceable with mill and galvanizing certificates supplied for tender and inspection. Share your earthing grid drawing and conductor schedule with a quote request and the Howrah engineering desk will return a cut-and-bent offer.

Technical Specifications

GI Earth Strip & Flat

Specifications

Strip Size
25×3 — 75×10 mm
Galvanizing
610 g/m² min. (IS:4759)
Tensile Strength
410 N/mm² min.
Length
6m / coil supply

Standards Compliance

  • IS:3043
  • IS:2062
  • IS:4759
  • IEC 62561

Materials Available

  • IS:2062 E250 Steel

Surface Finishes

  • Hot-Dip Galvanized

Applications

  • Grounding mat networks
  • Lightning down-conductor
  • Equipment bonding
  • Lightning ring conductors

Frequently Asked Questions

What is GI earth strip used for?+

Substation grounding mats, equipment bonding and lightning-protection down-conductors — the primary buried earth-grid conductor in Indian substations.

Which standards govern it?+

Steel to IS:2062, hot-dip galvanized to IS:4759, with mill and galvanizing certificates supplied for tenders.

Can strips be supplied cut and bent?+

Yes — flats are drilled, bent and welded to the grounding grid layout before despatch.

Where is it manufactured?+

At India Electricals Syndicate, Howrah, Kolkata — in continuous manufacture since 1972.
