Earthing & Lightning Protection

Lightning Protection System

Air terminals, down conductors, and surge protection per IEC 62305.

MaterialCopper
FinishHot-Dip Galvanized
Request Quote Datasheet

Lightning Protection System — Overview

India Electricals Syndicate supplies complete external lightning protection systems — air terminals, down-conductors, test links and bonding hardware — engineered to intercept a lightning strike and conduct it safely to the earth termination network. For tall structures, plants and substations a coordinated air-termination-to-earth path is a code requirement, not an option.

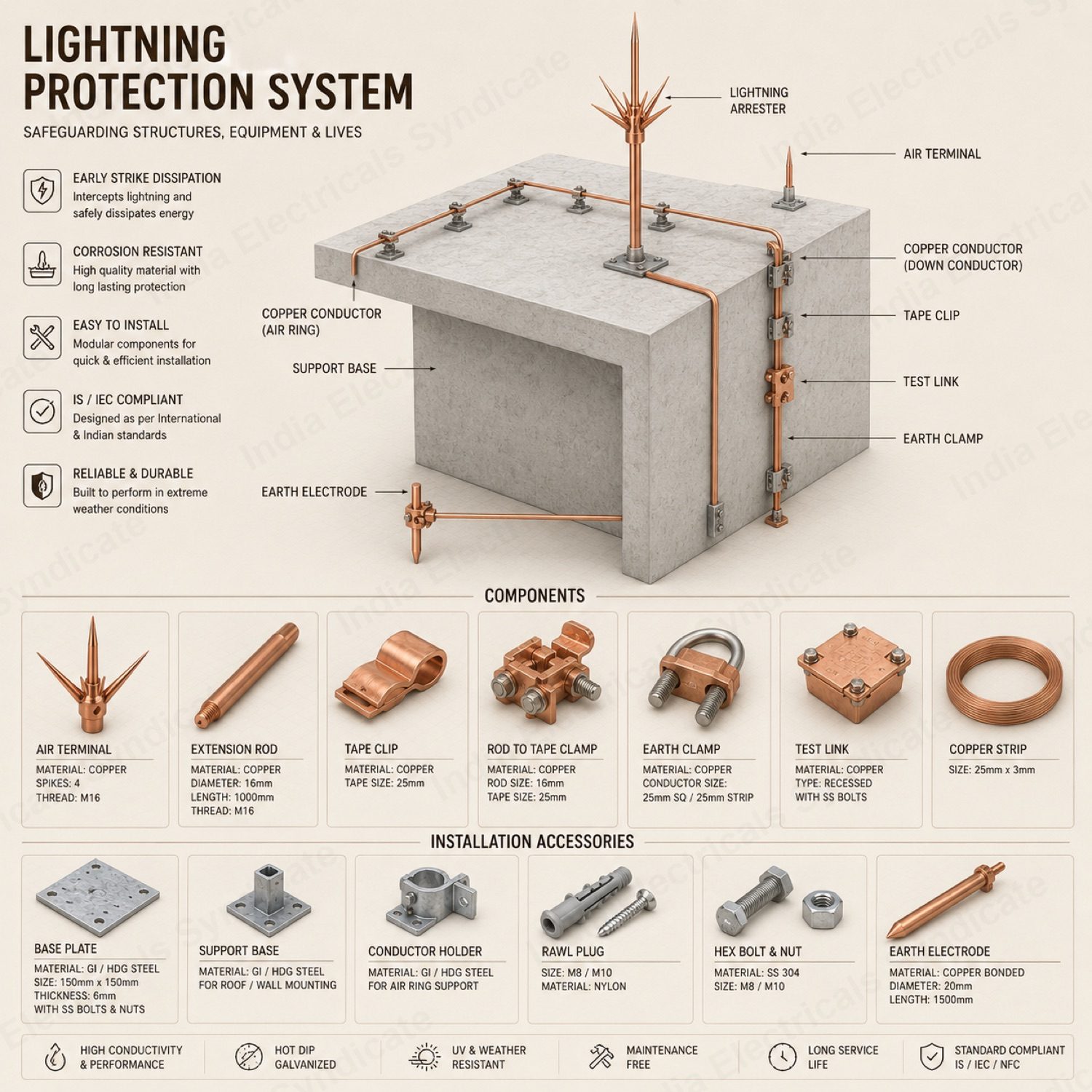

The range includes Franklin rods and early-streamer-emission (ESE) air terminals, copper and aluminium down-conductors, disconnecting test links for periodic earth testing, and the clamps and bonds that maintain a low-impedance path with no sharp bends. Components are selected to the structure’s rolling-sphere protection zone and integrated with the IES earthing system.

Systems are designed per IEC 62305 and IS/IEC 62305, with documentation supplied for tender and statutory inspection. Share your structure dimensions and protection level with a quote request and the Howrah engineering desk will return a designed system offer.

Technical Specifications

Lightning Protection System

Specifications

Air Terminal Heights
1m — 5m
Down Conductor
Copper / Aluminium / GI strip
Standards
IEC 62305 / IS/IEC 62305

Standards Compliance

  • IEC 62305
  • IS/IEC 62305
  • NFC 17-102 (ESE)

Materials Available

  • Copper
  • Aluminium
  • GI

Surface Finishes

  • Hot-Dip Galvanized
  • Bare Copper

Applications

  • Industrial buildings
  • Substations
  • Telecom towers
  • Storage tanks

Frequently Asked Questions

What does an external lightning protection system include?+

Air terminals (Franklin or ESE), copper/aluminium down-conductors, disconnecting test links, and bonding hardware tied to the earth termination network.

Which standard is the design to?+

IEC 62305 and IS/IEC 62305, with the air termination set out to the structure’s rolling-sphere protection zone.

Is it integrated with earthing?+

Yes — down-conductors terminate into the IES earthing system for a continuous low-impedance strike path.

Where is it supplied from?+

India Electricals Syndicate, Howrah, Kolkata — serving Indian infrastructure projects since 1972.
