Solar Mounting Structures

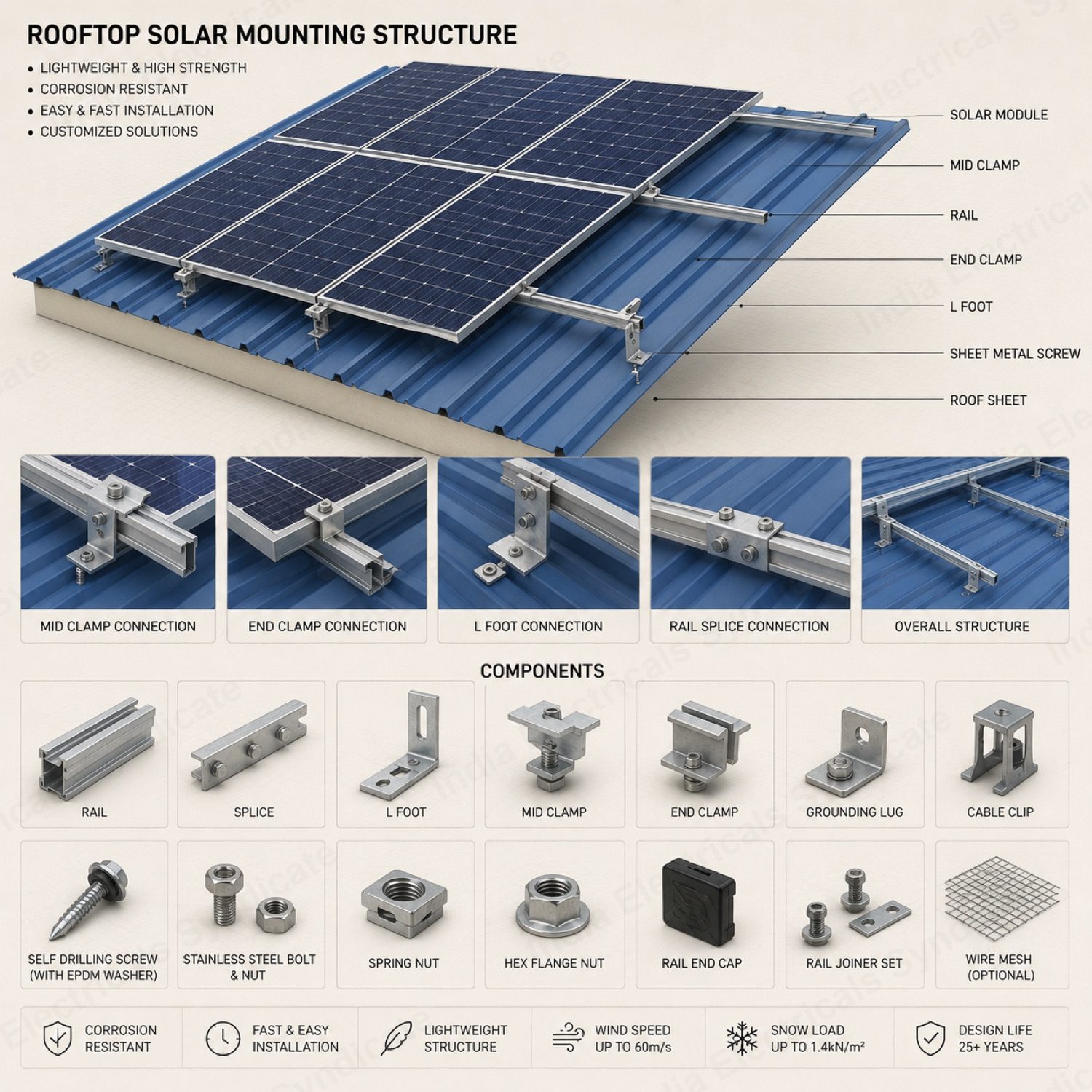

Rooftop Solar Mounting Structure

RCC and metal-roof solar mounting for C&I rooftops.

MaterialPre-galvanized GI
FinishHDG
Request Quote Datasheet

Rooftop Solar Mounting Structure — Overview

India Electricals Syndicate supplies rooftop solar mounting structures from Howrah for RCC, trapezoidal metal-sheet and standing-seam roofs. Rooftop mounting must transfer wind uplift into the building without compromising the roof waterproofing; IES matches the fixing method and tilt frame to the roof type rather than forcing one solution onto every site.

Solutions cover ballasted and anchored RCC frames, sheet-roof clamp systems for trapezoidal profiles, and non-penetrative standing-seam clamps, in pre-galvanized and hot-dip galvanized options. Tilt frames are wind-tested for the building height and exposure so C&I rooftop arrays meet the design generation without overloading the roof.

Each layout is supplied with fixing details, load reactions and galvanizing records for structural and rooftop-warranty sign-off. Send your roof type, building height and array layout with a quote request and the Howrah engineering desk will return a rooftop MMS offer.

Technical Specifications

Rooftop Solar Mounting Structure

Specifications

Roof Types
RCC / Metal sheet / Standing seam
Tilt Range
5° — 15° (rooftop)
Ballasted Option
Yes (RCC roofs)
Material
Pre-galvanized GI / HDG steel / Aluminium

Standards Compliance

  • IS:875
  • IEC 62817

Materials Available

  • Pre-galvanized GI
  • HDG Steel
  • Aluminium 6061

Surface Finishes

  • HDG
  • Pre-Galvanized
  • Mill-finish Aluminium

Applications

  • Industrial rooftops
  • Commercial buildings
  • Warehouses
  • Residential PV

Frequently Asked Questions

Which roof types are supported?+

RCC (ballasted or anchored), trapezoidal metal sheet (clamp system) and standing-seam (non-penetrative clamps).

Does the fixing damage roof waterproofing?+

Non-penetrative and clamp systems are used where waterproofing must be preserved; the method is matched to the roof type.

What finishes are available?+

Pre-galvanized and hot-dip galvanized tilt frames, wind-tested for the building height and exposure.

Where is it supplied from?+

India Electricals Syndicate, Howrah, Kolkata — serving Indian C&I solar projects since 1972.
