Substation Gantry Structures — Overview

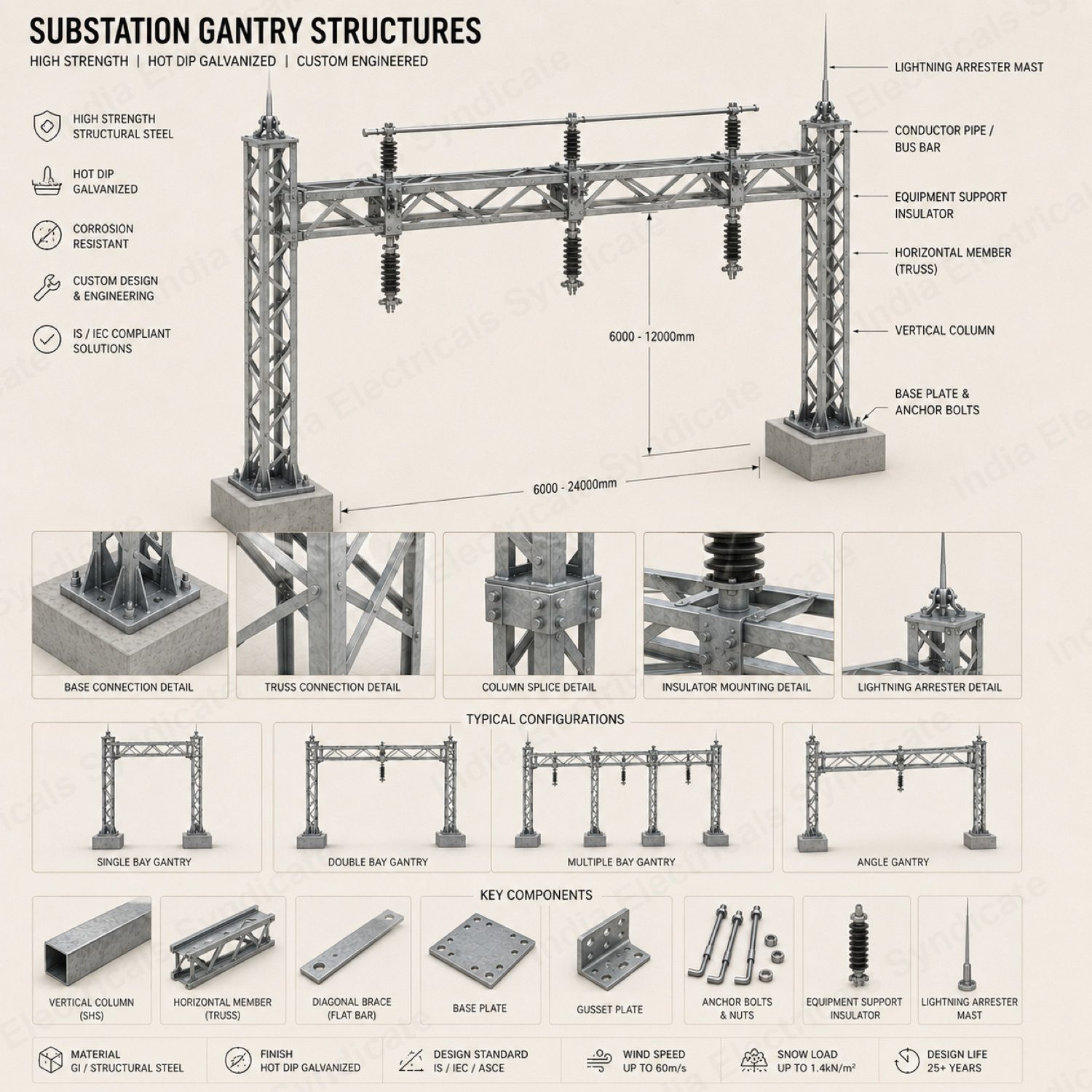

India Electricals Syndicate fabricates hot-dip galvanized substation structures at Howrah — equipment support frames for CT, PT, CB and lightning arresters, bus-bar gantries, take-off gantries and lighting masts for 33 kV to 400 kV air-insulated substations. These structures set the electrical clearances and carry switchgear and conductor loads for the substation’s life, so dimensional accuracy and galvanizing are inspected to utility standards.

Structures are fabricated from IS:2062 steel to the substation layout and equipment GA, with bolt-hole positions held to the equipment footprint so switchgear mounts without site modification. All members are hot-dip galvanized for the outdoor design life and proof-checked for fit before despatch.

Each structure carries mill certificates, galvanizing records and erection drawings for utility inspection. Send your substation layout and equipment schedule with a quote request and the Howrah engineering desk will return a fabricated structure offer.

Technical Specifications

Substation Gantry Structures

Specifications

Voltage Class
33 kV — 400 kV
Material
IS:2062 E250 / E350
Galvanizing
IS:4759 (86 µ min.)
Design Standards
IS:802 / IEC 60865

Standards Compliance

  • IS:802
  • IS:2062
  • IS:4759
  • IEC 60865

Materials Available

  • IS:2062 Steel
  • HDG Hardware

Surface Finishes

  • Hot-Dip Galvanized

Applications

  • AIS substations
  • GIS bays
  • Bus-bar gantries
  • Equipment supports

Frequently Asked Questions

What substation structures does IES make?+

Equipment support frames (CT/PT/CB/LA), bus-bar gantries, take-off gantries and lighting masts for 33 kV–400 kV AIS substations.

Are bolt holes matched to the equipment?+

Yes — hole positions are held to the equipment footprint so switchgear mounts without site modification.

How are they corrosion protected?+

Hot-dip galvanized for the outdoor design life, with galvanizing records supplied for utility inspection.

Where are they fabricated?+

At India Electricals Syndicate, Howrah, Kolkata — in continuous manufacture since 1972.
